I created the above maps by overlaying OpenStreetMap (OSM) maps with my own data. Copyright on the OSM maps is © OpenStreetMap contributors, licensed under a CC-BY-SA (Creative Commons Attribution-ShareAlike 2.0 licence).
Please note that the OSM maps used as templates for these maps correspond to the situation at the time the maps were downloaded and may show features that did not exist at the time the GS Tram Site is supposed to show. In particular, they may show bridges and highways that were built later.
ABBREVIATIONS ON THE MAPS
DI | Duquesne Incline | MI | Monongahela Incline |
ROUTES

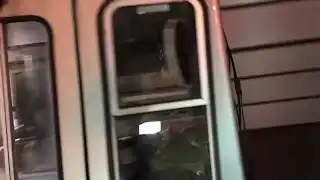

LRT ROUTES
Operator: Port Authority of Allegheny County
B | Blue Line | Allegheny - North Side - Gateway Center - Wood Street - Steel Plaza - First Av. - Panhandle Bridge - Mt. Washington Tunnel - South Hills Jnctn. - Overbrook - Castle Shannon - Washington Jnctn. - South Hill Village |
R | Red Line | Allegheny - North Side - Gateway Center - Wood Street - Steel Plaza - First Av. - Panhandle Bridge - Mt. Washington Tunnel - South Hills Jnctn. - Beechview - Dormont - Mt. Lebanon - Overbrook Jnctn. - Castle Shannon - Washington Jnctn. - South Hill Village |
S | Silver Line | Allegheny - North Side - Gateway Center - Wood Street - Steel Plaza - First Av. - Panhandle Bridge - Mt. Washington Tunnel - South Hills Jnctn. - Overbrook - Castle Shannon - Washington Jnctn. - Lytle - Library |
NB: The route designations B, R and S are for convenience only, and are not used by the operator.

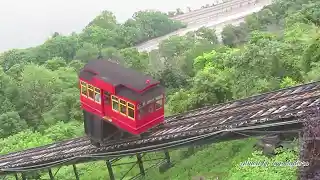

INCLINES (FUNICULARS)
Operator: By private non-profit organization (Duquesne Incline) and by the Port Authority of Allegheny County (Monongahela Incline)
Duquesne Incline | W Carson St. - Grandview Av. (and Oneida St.) | |
Monongahela Incline | W Carson St. - Grandview Av. (and Wyoming St.) |
CHARACTERISTICS OF THE SYSTEM
NETWORK LENGTH
- LRT network: 42.2 km.
- Duquesne Incline: 244 m.
- Monongahela Incline: 194 m.
HISTORY
- Streetcars: (horse-powered) 6 Aug. 1859 - 27 Aug. 1923; (electric) 21 Feb. 1888 - today.
- Passenger incline: 28 May 1870 - 21 Nov. 1962 (reopened as a tourist attraction: 1 July 1963 - today).
- Cable cars: 9 Oct. 1888 - 14 June 1897.
- Interurbans: 1891 - 29 Aug. 1953
- Light rail (integrated with the streetcar lines): 15 Apr. 1984 - today.
- Funiculars (Inclines): 28 May 1870 - today.
GAUGE
- Streetcars & Light rail: 1588 mm.
- Funiculars (Inclines): 1524 mm. (Knoxville Incline: 2743 mm.)
SOURCES
- Berman, J. Pittsburgh Railways - Trolley service updated for 1954. Map, June 2019.
- DuPuis, R. "Farewell to the Pittsburgh PCCs - Part 2" Tramways & Urban Transit, Feb. 2000 (63: 746), p.49-51.
- Lyon, M.A. "Pittsburgh trams today: Phoenix or swan song?" Modern Tramway & Rapid Transit Review, Nov. 1974 (37: 443), p.366-373.
- Miller, O.W. History of Pittsburgh area transit since 1840 and PATRansit 1964-1974: Historical data (Draft). Pittsburgh: Port Authority of Allegheny County, 1974.
- Sellin, M.V. & Morgan, S.J. "Pittsburgh light rail progress" Modern Tramway & Light Rail Transit, May 1986 (49: 581), p.155-165.
- Simons, V. "Systems Factfile No.57: Pittsburgh, USA" Tramways & Urban Transit, June 2012 (75: 894), p.223-226.
- Simons, V. "Systems Factfile No.184: Pittsburgh, USA" Tramways & Urban Transit, Feb.2023 (86: 1022), p.63-67.
- Taplin, M.R. Tramways of North America, including rapid transit [Tramway Handbooks No.4] Hassocks (West Sussex, England): Light Rail Transit Association, 1981.
WIKIS
- Duquesne Incline
- Knoxville Incline
- Monongahela Incline
- Pittsburgh Railways
- List of streetcar routes in Pittsburgh
- Pittsburgh light rail
WEB SITES
Special thanks to Russell Powers from Denver CO for information on the history of the Pittsburgh system.
