Dallas after the extension of the Dallas Streetcar to Bishop Arts on 29 Aug. 2016 and the
extension of the Blue Line (LRT) to UNT Dallas on 24 Oct. 2016.
VIDEOS
| Above: YouTubeCA video - Look at How They Turn Around this Tram! The McKinney Avenue Trolley in Dallas, Texas - Length: 8:06 mins. |
Above: YouTubeCA video - Onboard and Around the Dallas Streetcar - Length: 40:18 mins. |

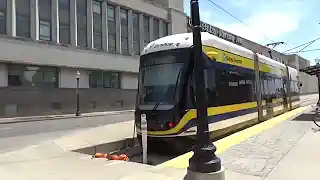

Above: YouTubeCA video - LightRail in Downtown Dallas, Texas 2018 - Length: 10:28 mins. |

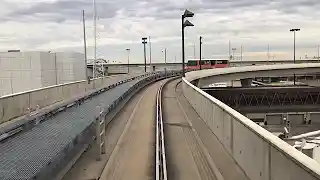

Above: YouTubeCA video - Dallas/Fort Worth International Airport DFW Skylink Outer Loop Ride (Counter Clockwise) 5/3/19 - Length: 19:20 mins. |
PHOTOS
MAPS

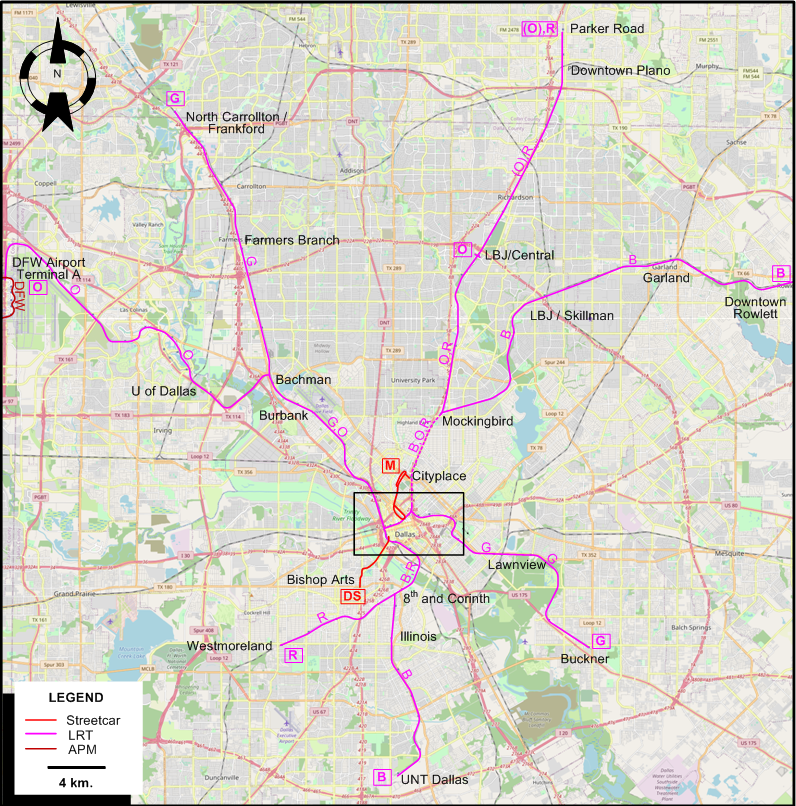

DALLAS

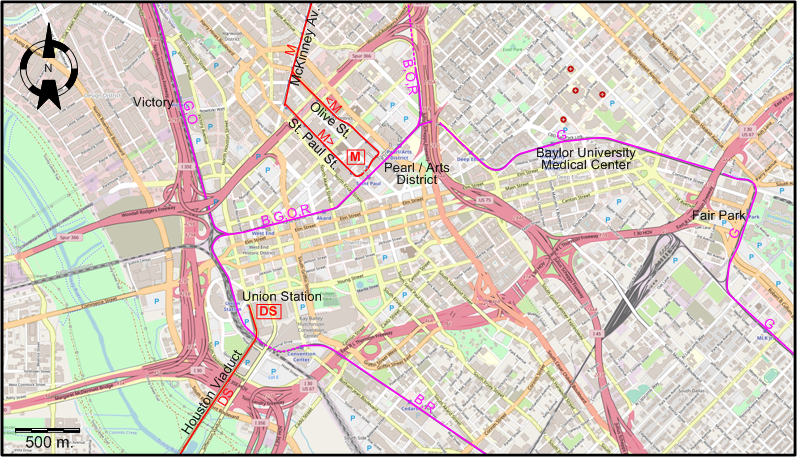

INSET: CENTRAL DALLAS
I created the above maps by overlaying OpenStreetMap (OSM) maps with my own data. Copyright on the OSM maps is
© OpenStreetMap contributors, licensed under a CC-BY-SA (Creative Commons Attribution-ShareAlike 2.0 licence).
Please note that the OSM maps used as templates for these maps correspond to the situation at the time the maps were downloaded and may show features that did not exist at the time
the GS Tram Site is supposed to show. In particular, they may show bridges and highways that were built later.
ROUTES
HERITAGE STREETCAR ROUTE
Operator: McKinney Avenue Transit Association (MATA)
| M |
M Line |
Pearl / Arts District - Olive St. [back: St. Paul St.] - McKinney Av. - Cityplace |
STREETCAR ROUTE
Operator: Dallas Area Rapid Transit (DART)
| DS |
Dallas Streetcar |
Union Station - Houston Viaduct - Bishop Arts |
LIGHT RAIL ROUTES
Operator: Dallas Area Rapid Transit (DART)
| B |
Blue Line |
Downtown Rowlett - Garland - LBJ / Skillman - Mockingbird - Cityplace - Pearl / Arts District - Union Station -
8th and Corinth - Illinois - UNT Dallas |
| G |
Green Line |
Buckner - Lawnview - Fair Park - Baylor University Medical Center - Cityplace - Pearl / Arts District - Victory -
Burbank - Bachman - Farmers Branch - North Carrollton /Frankford |
| O |
Orange Line |
[Rush hours: Parker Road - Downtown Plano - ] LBJ/Central - Mockingbird - Cityplace - Pearl / Arts District - Victory -
Burbank - Bachman - U of Dallas - Las Colinas - DFW Airport Terminal A |
| R |
Red Line |
Parker Road - Downtown Plano - LBJ/Central - Mockingbird - Cityplace - Pearl / Arts District - Union Station -
8th and Corinth - Westmoreland |
AUTOMATED PEOPLE MOVER (APM) SYSTEM
Operator: Bombardier Transportation
| DFW |
DFW Skylink |
DFW Airport Terminal A - Terminal E [Circular route, both directions]) |
The route indicators M, DS, B, G, O, R and DFW are for convenience only, and are not used by the operators.
CHARACTERISTICS OF THE SYSTEM
NETWORK LENGTH
- Heritage streetcar line: 7.4 km.
- Dallas Streetcar: 4 km.
- Light Rail: 150 km.
- Automated People Mover (APM) - DFW Skylink: 7.7 km.
HISTORY
- Mule-drawn streetcars: 7 Feb. 1873 - ?.
- Steam dummies (Steam-operated streetcars): 1880 - 1890.
- Electric streetcars (1st generation): 1889 - 15 Jan. 1956.
- Electric streetcars (2nd generation): 13 Apr. 2015 - today.
- Heritage streetcars: 22 July 1989 - today.
- Interurbans: 1902 - 31 Dec. 1948.
- LRT: 14 June 1996 - today.
- Automated People Mover (APM) - DFW Skylink: 21 May 2005 - today
GAUGE
- 1435 mm. (all systems except APM)
SOURCES
PRINT
- Lietwiler, C. "Dallas: Light rail is preparing for expansion", Light Rail & Modern Tramway, March 1997 (60: 711), p.93-96.
- Lyons, M. "Tracks of transformation: 25 years of DART rail", Tramways & Urban Transit, Aug. 2021 (84: 1004), p.321-339.
- Simons, V. "Dallas streetcar: A US first", Tramways & Urban Transit, Sept. 2015 (78: 933), p.361-362.
- Simons, V. "Dallas: The US urban rail pathfinder", Tramways & Urban Transit, Nov. 2017 (80: 959), p.412-416.
- Simons, V. "DART hits the target", Tramways & Urban Transit, Feb. 2011 (74: 878), p.50-53.
- Simons, V. "DART takes flight", Tramways & Urban Transit, Dec. 2014 (77: 924), p.498-503.
- Wansbeek, C.J. "Dallas: Passenger boom fuels major expansion", Tramways & Urban Transit, Feb. 2007 (70: 830), p.55-59.
- Zapalac, G. "The PCC era in Dallas", in Southern Traction, 10 Dec. 1967.
WIKIS
WEB SITES
Also, many thanks to Mr Russell Powers of Lone Tree, CO, USA, for kindly sending me copious amounts of information and documents
concerning the history of the Dallas streetcar and interurban systems.
