19 March 1966

The Barcelona tram network on the day of inauguration of the last new tram line in the city: Pl. del Centre - Collblanc.




ESPAÑA - SPAIN

BARCELONA

BILBAO

MADRID


GS Web Site Home


Barcelona PCC tram Barcelona Doublre decker tram Barcelona Blue tram
Barcelona Series 100 Metro Barcelona metro Brill

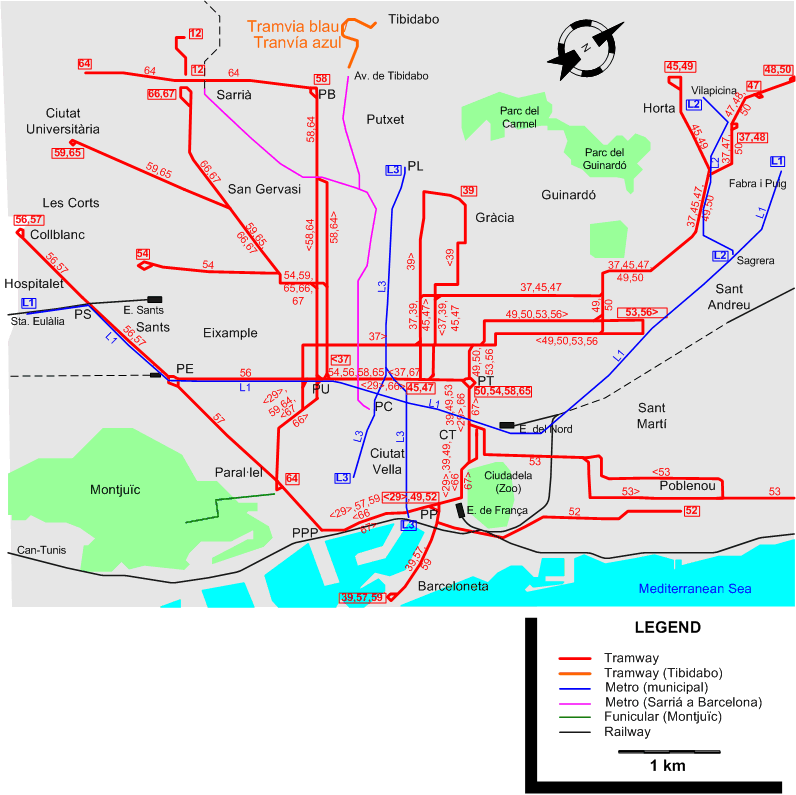

Barcelona 1966 tram map

INSET: CENTRAL BARCELONA

Barcelona 1966 central tram map




I created the above maps by overlaying OpenStreetMap (OSM) maps with my own data. Copyright on the OSM maps is © OpenStreetMap contributors, licensed under a CC-BY-SA (Creative Commons Attribution-ShareAlike 2.0 licence).

Please note that the OSM maps used as a template for these maps corresponds to the situation at the time the map was downloaded and may show features that did not exist at the time the GS Tram Site is supposed to show. In particular, it may show bridges and highways that were built later.

Note: Names of streets, squares etc. used below and on the maps are as they are today, in Catalan (and not in Spanish, as they were at the time of this map).


DISCONTINUATION DATES OF TRAM TRACKS BETWEEN 19 MAR. 1966 AND 4 FEB. 1968 (affected route numbers in parantheses)

  • 1967 Aug.1: Pl. Sarrià - Pl. de Borràs (12)
  • 1967 Nov. 17: Pl. de Espanya - Paraŀlel (57)
  • 1967 Dec. 3: Pl. de la Universitat - Sant Antoni - Paraŀlel (59,64); Pl. de la Bonanova - Pedralbes (64)
  • 1967 Dec. 17: Pla de Palau - Pueblo Nuevo (52)
  • 1967 Dec. 21: C. de Corsega - C. d’Aribau [back: C. de Muntaner] - C. de Muntaner - Pl. de la Bonanova (58)

ROUTES


Operator: Tranvías de Barcelona, SA. (ancestor of Transports Metropolitans de Barcelona (TMB))

URBAN TRAM ROUTES

12 Pl. Sarrià - Pl. de Borràs
29 Pla del Palau – Est. de França - Arc de Triomf – Tetuan – Gran Via – Pl. de la Universitat – Sant Antoni – Paraŀlel – Drassanes – Pla del Palau [circular route, both directions]
34 Pla de Palau - Barceloneta
37 Pl. de la Universitat - [C. d’Aribau - C. del Consell de Cent – C. de Llúria] [back : C. del Bruc – Gran Via] – C. de Rosselló – C. del Dos de Maig – C. de la Indústria – Maragall – Virrei Amat
39 Gràcia (Pl. Rovira) – [C. Torrent de les Flors – C. Bailèn – C. del Bruc] [back : C. de Llúria – C. del Torrent de l'Olla] – Gran Via – Tetuan – Arc de Triomf – Est. de França - Pla del Palau – Barceloneta
45 Gran Via – C. de Llúria [back: C. del Bruc] – C. de Rosselló – C. del Dos de Maig – C. de la Indústria – Maragall – Horta
47 Gran Via – C. de Llúria [back: C. del Bruc] – C. de Rosselló – C. del Dos de Maig – C. de la Indústria – Maragall – Virrei Amat – Pg. de Verdum
48 Virrei Amat – Pg. de Verdum – Via Júlia
49 Pla de Palau – Est. de França – Arc de Triomf - Tetuan – C. Mallorca [back : C. València] – C. del Dos de Maig – C. de la Indústria – Maragall – Horta
50 Tetuan – C. Mallorca [back : C. València] – C. del Dos de Maig – C. de la Indústria – Maragall – Virrei Amat – Pg. de Verdum – Via Júlia
52 Pla del Palau – Poblenou
53 C. de Rogent – C. València [back: C. Mallorca] – Tetuan – Arc de Triomf – E. del Nord – C. de Pujades [back: C. de Pallars] - Diagonal Mar - Barrio Besòs
54 Collblanc – Av. de Madrid – C. de Berlin – C. de Corsega - C. Muntaner [back: C. Aribau] – Pl. de la Universitat - Gran Via – Tetuan
56 Collblanc – Carrer de Sants – Pl. de Espanya – Gran Via – Tetuan – C. Mallorca [back : C. València] – C. de Rogent
57 Collblanc – Carrer de Sants – Pl. de Espanya – Av. del Paraŀlel – Paraŀlel – Drassanes - Pla del Palau – Barceloneta
58 Tetuan - Gran Via - Pl. de la Universitat - C. d’Aribau [back: C. de Muntaner] - C. de Muntaner - Pl. de la Bonanova
59 Ciutat Universitària – Av. Diagonal – Av. de Sarrià – C. de Corsega - C. Muntaner [back: C. Aribau] – Pl. de la Universitat – Sant Antoni – Paraŀlel – Drassanes – Pla del Palau - Barceloneta
64 Paraŀlel - Sant Antoni - Pl. de la Universitat - C. d’Aribau [back: C. de Muntaner] - C. de Muntaner - Pl. de la Bonanova - Pedralbes
65 Ciutat Universitària – Av. Diagonal – Av. de Sarrià – C. de Corsega - C. Muntaner [back: C. Aribau] – Gran Via – Tetuan
66 Sarrià – Pg. de Sant Joan Bosco – Av. de Sarrià – C. de Corsega - C. Muntaner – Pl. de la Universitat - Gran Via - Tetuan - Arc de Triomf - Est. de França - Pla de Palau - Drassanes - Paraŀlel – Sant Antoni - Pl. de la Universitat - C. d’Aribau - C. de Corsega - Av. de Sarrià – Pg. de Sant Joan Bosco – Sarrià [Loop route, clockwise]
67 Sarrià – Pg. de Sant Joan Bosco – Av. de Sarrià – C. de Corsega - C. Muntaner – Pl. de la Universitat - Sant Antoni – Paraŀlel – Drassanes – Pla del Palau - Est. de França - Arc de Triomf – Tetuan – Gran Via – Pl. de la Universitat - C. d’Aribau - C. de Corsega - Av. de Sarrià – Pg. de Sant Joan Bosco – Sarrià [Loop route, counter-clockwise]

TOURIST TRAMWAY ("BLUE TRAMWAY")

Operator: Sociedad Anónima El Tibidabo

Tranvía azul Pl. Kennedy - Av. de Tibidabo - Funicular del Tibidabo

METRO

Operator: FC Metropolitano de Barcelona

I Sta. Eulàlia - Plaça de Sants - Pl. de Espanya - Pl. de Catalunya - Arc de Triomf - Glòries - Clot - La Sagrera - Fabra i Puig
II La Sagrera - Maragall - Vilapicina
III Lesseps - Diagonal - Pl. de Catalunya - Fernando / Correos

Operator: Ferrocarriles de Cataluña

   Pl. de Catalunya - Provença - Sant Gervasi - La Bonanova - Sarrià
   Pl. de Catalunya - Provença - Pàdua - Av. de Tibidabo

FUNICULARS

   Paraŀlel - Montjuïc
   Pl. Dr. Andreu - Tibidabo
   Peu del Funicular - Vallvidrera

CHARACTERISTICS OF THE SYSTEM

NETWORK LENGTH

  • Tramways: ? km.
  • Metro (Municipal): ? km.
  • Metro (Ferrocarriles de Cataluña): 6 km.
  • Blue tramway: 1.1 km.
  • Montjuïc funicular: 758 m.


HISTORY

  • Urban tramways (First cycle): (horse-drawn) 27 June 1872 - 1905?; (electric): 26 Jan. 1899 - 18 Mar. 1971.
  • Urban tramways (Second cycle): (electric) 3 Apr. 2004 - today.
  • Blue Tramway: (electric) 29 Oct. 1901 - today.
  • Urban metro lines: 30 Dec. 1924 - today.
  • FGC metro lines: (steam) 1863; (electric) 1906 - today.
  • Montjuïc funicular: 24 Oct. 1928 - today.
  • Tibidabo funicular: 29 Oct. 1901 - today.
  • Vallvidrera funicular: 1906 - today.

GAUGE

  • Urban tramways (First cycle): 1435/1000 mm.
  • Urban tramways (Second cycle): 1435 mm.
  • Blue Tramway: 1435 mm.
  • Metro (L1): 1674 mm.
  • Other metro lines: 1435 mm.
  • Montjuïc funicular: 1200 mm.
  • Tibidabo & Vallvidrera funiculars: 1000 mm.

SOURCES

PRINT

  • Gonzàlez Masip, A. Els tramvies de Barcelona – Història i explotació [Barcelona tramways – History and operations] (2 vols.) Barcelona: Rafael Dalmau, 1998.
  • "Systems Factfile: No.16 - Barcelona, Spain", Tramways & Urban Transit, Jan. 2009 (72:853), p.21-23.
  • Young, J. Barcelona transport maps (sheet maps). Exeter: Quail Map Co., 1985.
  • Wansbeek, C.J. "Barcelona: Teething troubles ironed out", Tramways & Ubran Transit, July 2004 (67:799), p.253-257.
  • Wansbeek, C.J. "Barcelona: Brand new impetus for the metro", Tramways & Ubran Transit, Sept. 2004 (67:801), p.331-333.
  • Zurita, F. "The tramways of Barcelona", Modern Tramway, Apr. 1963 (26:304), p.122-131.
  • Zurita, F. "The urban railways of Barcelona", Modern Tramway, Aug. 1963 (26:308), p.269-290.
